By default, when accessing the Weenat application, the first page displayed is: "My farm".
This page allows you to view your plots. This overview provides optimal management of your farm, especially if you monitor data from a large number of plots.

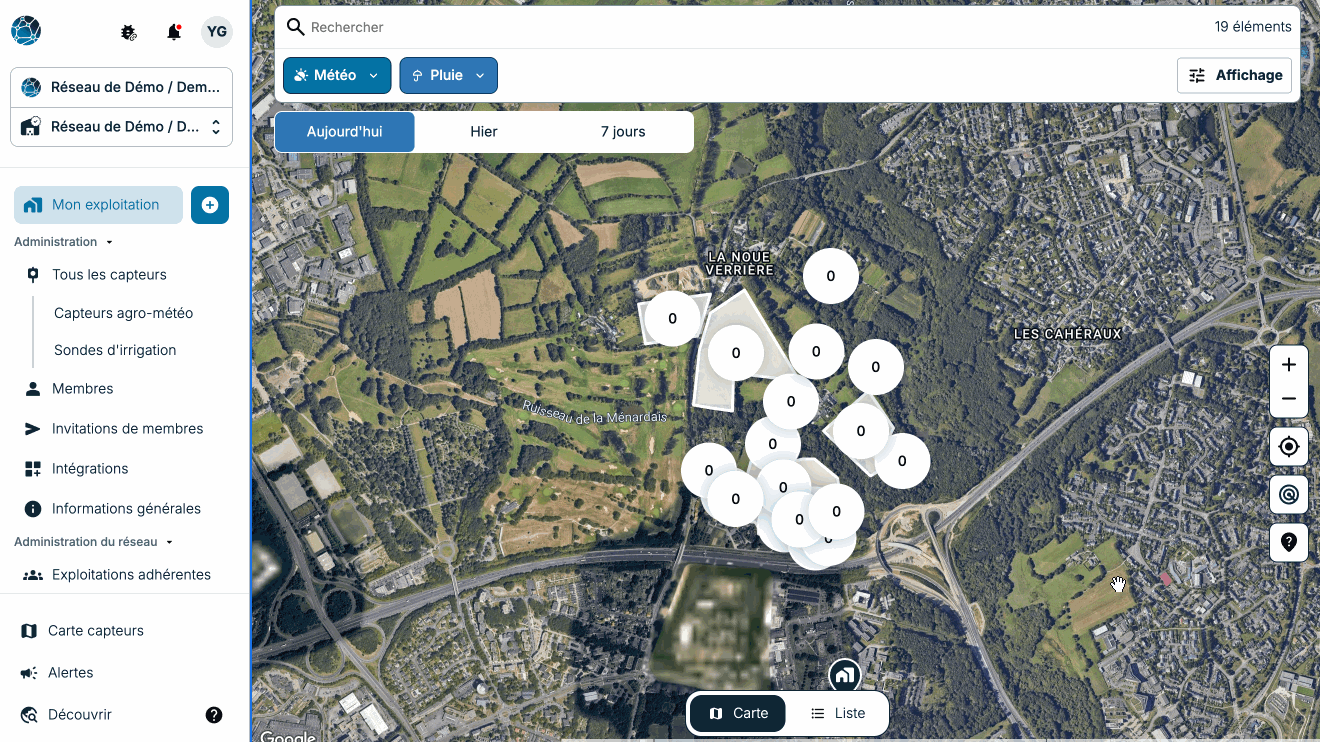

Web version
Plots are represented by circles (in the center of shapes representing the plot boundaries).
However, you can pin certain sensors on this map. (see [LINK]) These sensors (weather only, not irrigation sensors) are represented by squares.
There is a map view and a list view of My farm.
In the list view, aggregates (for example, for rainfall: "today", "yesterday" and the "last 7 days") are all visible at the same time. In the map view, do not forget to select the aggregate you are interested in.
By hovering over the circles (plots), a window opens and provides more information about the selected plot. The same applies to squares (sensors).
You can click on a circle or a square to access the detailed view.

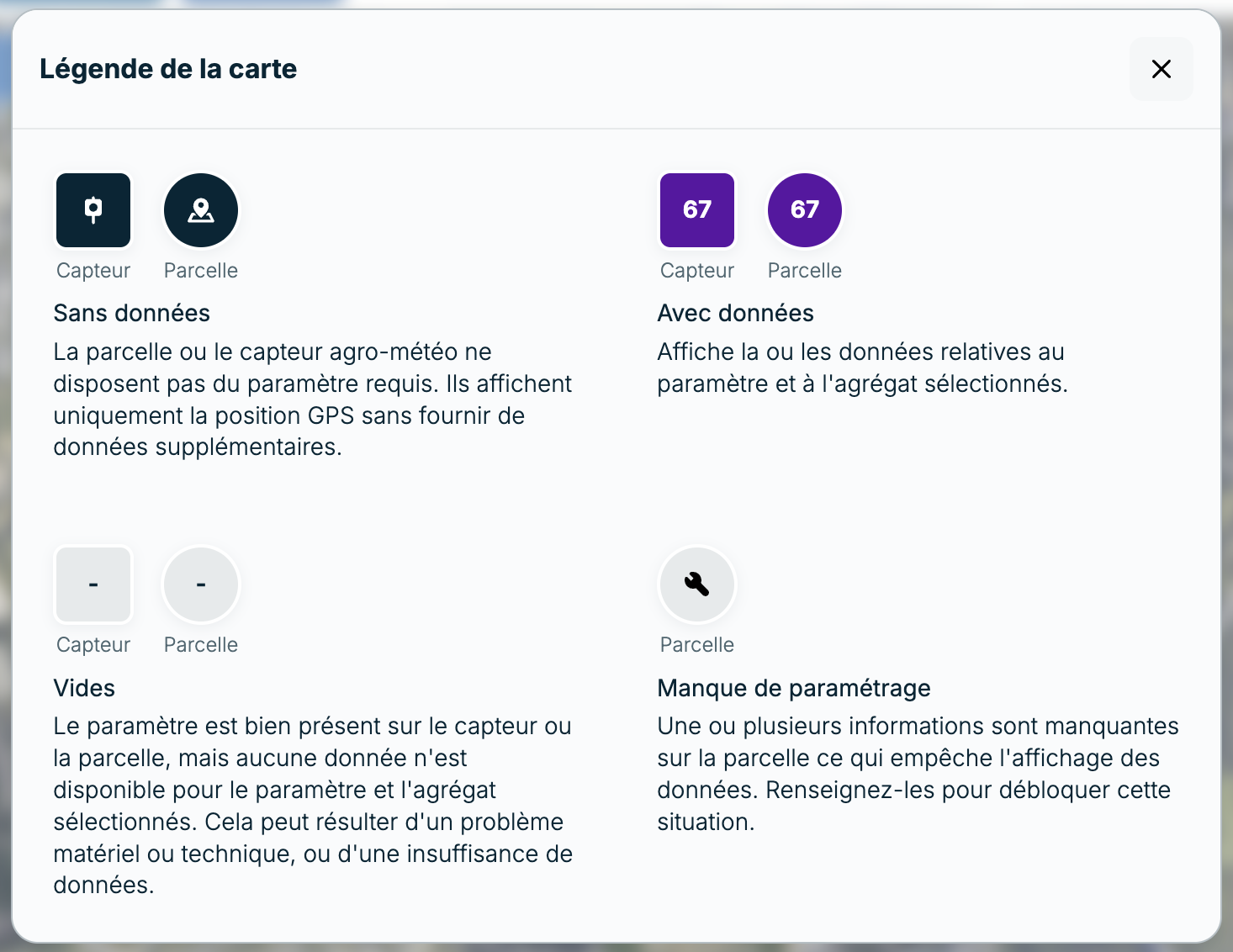

Legend
At the bottom right, by clicking on the "?" icon, a window opens and the legend is displayed. It allows you to understand the meaning of the different symbols on the map.

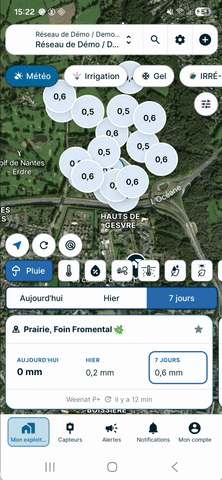

Mobile version
On the mobile version, the operation is similar but the display is different.
Since hovering is not available, you must tap on a circle to access the plot information.

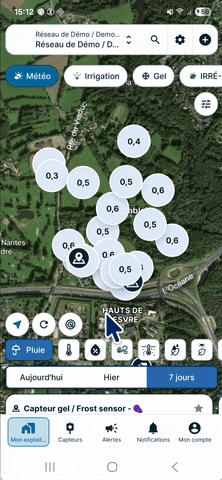

In the map view, you also have a plot carousel. It allows you to move from one plot detail to another by swiping in the carousel (to the left or right).
By clicking on one of the blocks in the carousel, you access the detailed view.
The mobile version also includes a list view. You can access it by changing the display settings.

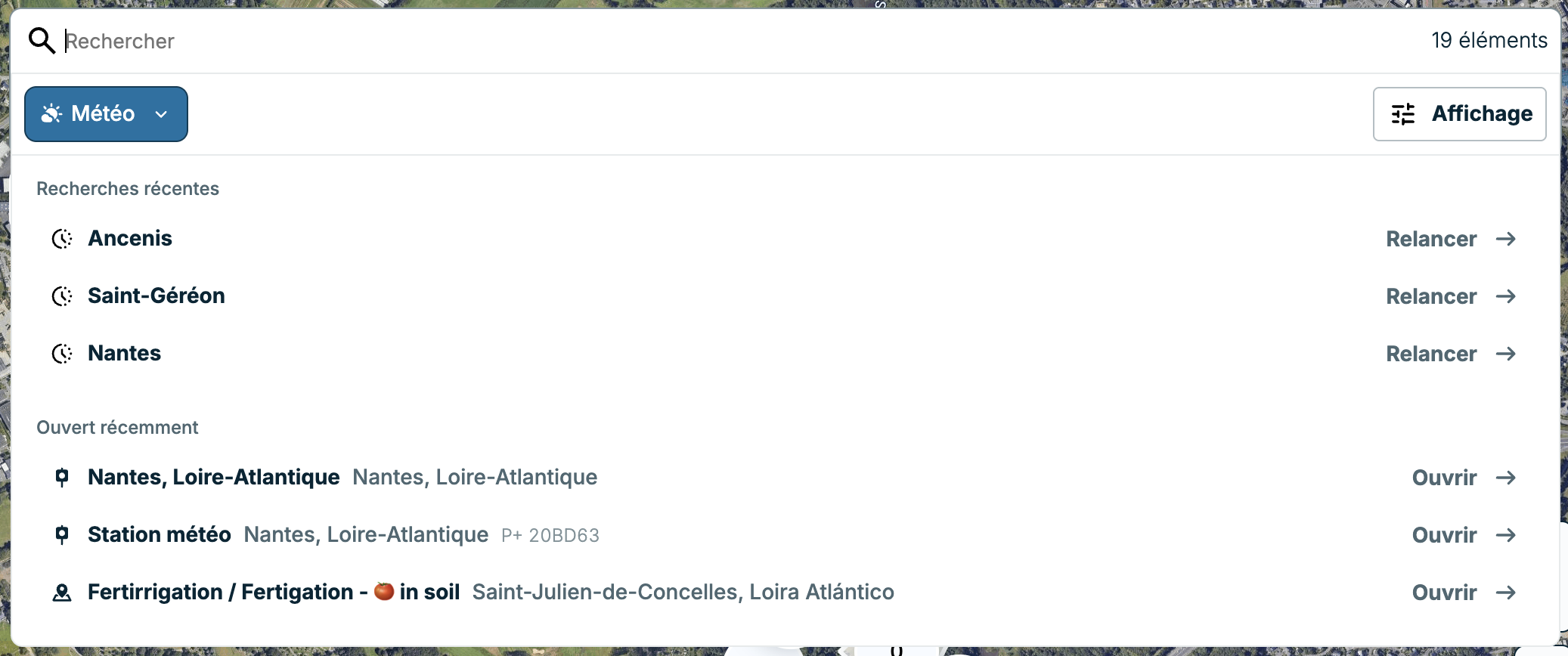

Search
The search allows you to find a plot by typing its name or the name of the city or department/region where it is located.
This way, there is no need to name your plots with department numbers or city names.
As soon as you validate text in the search field, the search is saved in your history and your last 3 searches as well as the last 3 viewed results are suggested.
Of course, do not forget to change universe if you are looking for an irrigation sensor, a frost sensor or a plot integrated with Irré-LIS.

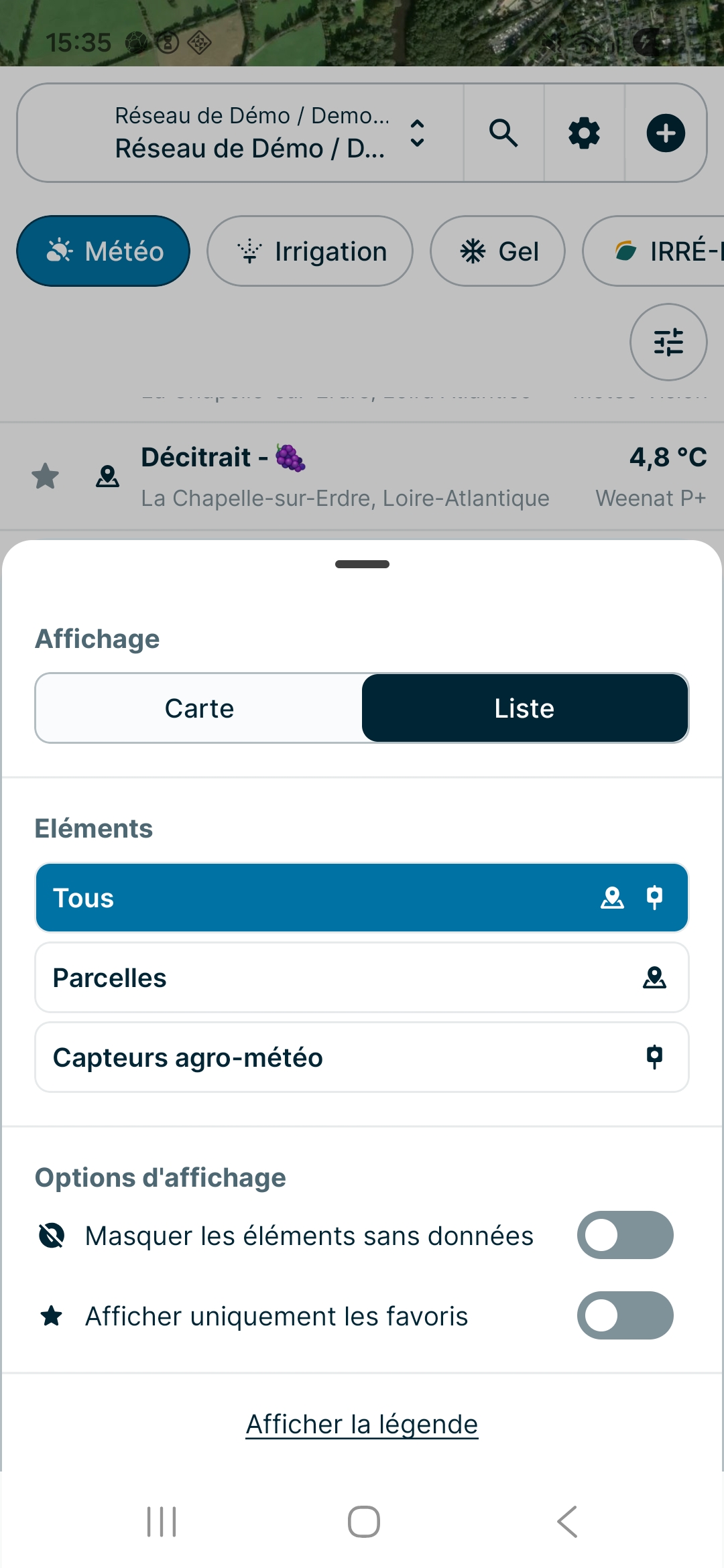

Display settings
The display settings panel allows you to customize the display of the "My farm" page and save your preferences.
- You can switch from map view to list view
- Filter the desired result types
- Hide sensors that cannot provide certain data (e.g. an anemometer does not measure rainfall)
- Filter to display only your favorite plots
