Just like in the Weather tab, the Irrigation tab now features a new design based on modular widgets.
This allows you to add, move, or remove widgets according to your needs, so you can tailor the display of your data to your practices.
📲 Be sure to update your app to discover this new experience!
Sensor Data Widget
Among the main new features, you will find the sensor data widget.
It gives you a clear overview of your measurements.
- To explore your data in detail, click "View Details".
- To zoom in on a specific period on mobile, select it by holding your finger down.
- To zoom out, click "Edit Graph" and choose a wider period.

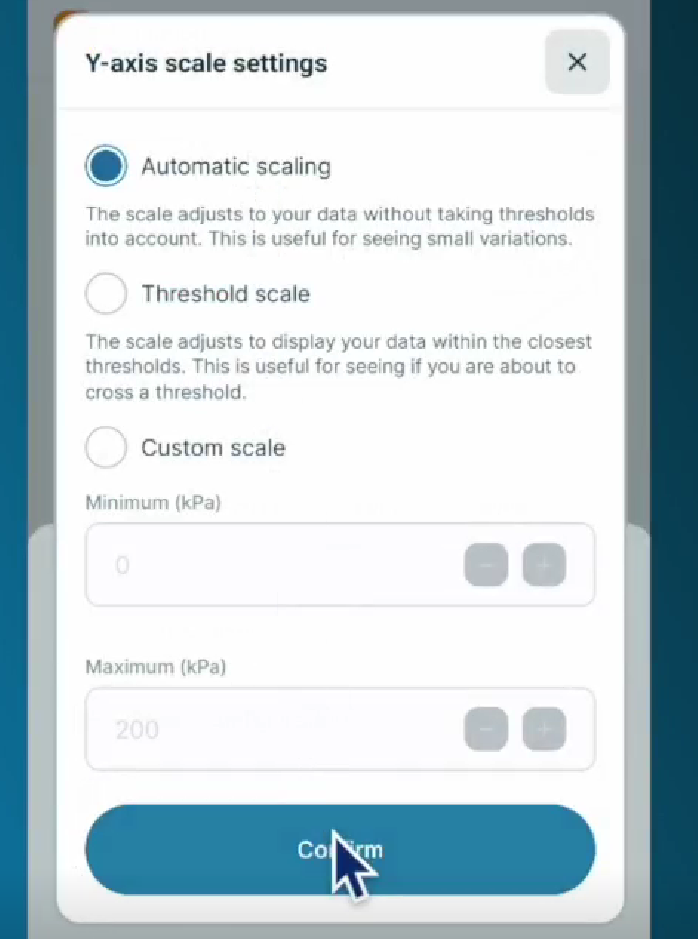

Configure Graph Scales
You can now customize the scale of the Y-axis:
- Automatic Scale: maximum zoom, continuously adjusted.
- Threshold Scale: shows your upper and lower thresholds, allowing you to quickly see if your curves approach them.
- Custom Scale: define your own minimum and maximum values.
Threshold Settings
Threshold settings have been updated:
- On mobile, you can configure them with a simple drag and drop.
- To save a threshold, give it a name.
- You can also change the view (by sensor or by horizon), the period, or the time step.
Other Available Widgets
Some widgets already present in the Weather tab are also available in Irrigation:
- Crop Monitoring
- Vapor Pressure Deficit
- Rain
- Evapotranspiration
- Solar Radiation (daily version or 2-week comparison with rain and ET)
New widgets specific to irrigation are also now available:

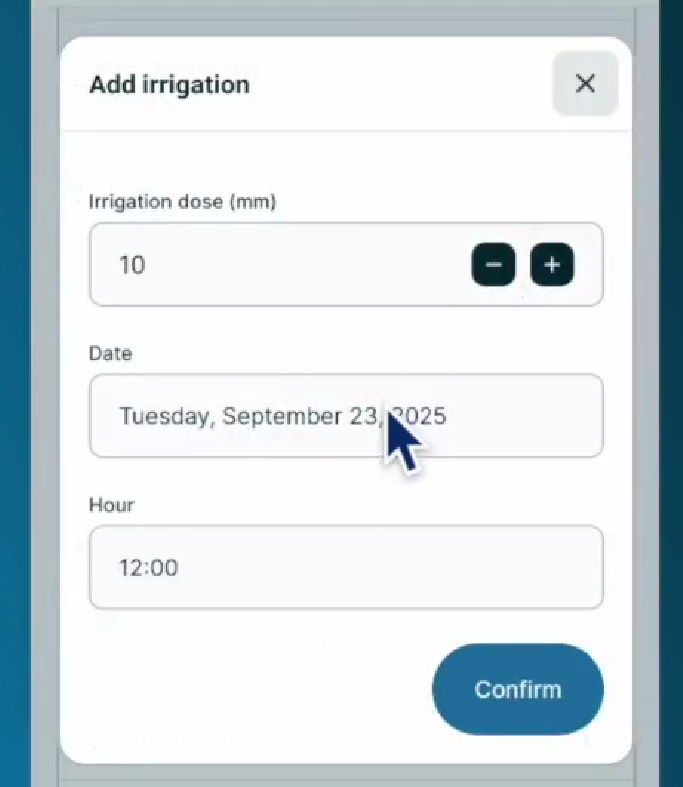

- My Irrigations: log your water applications and track their impact on the hydric condition of your field.

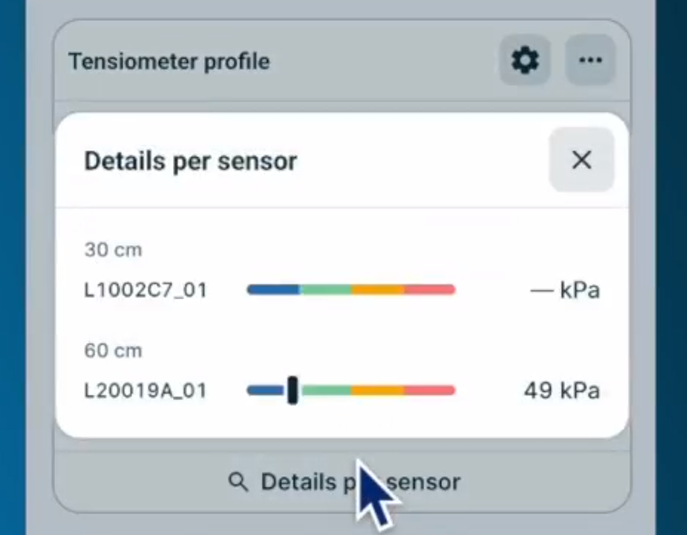

- Sensor Profiles (tensiometers and capacitive probes): get a quick overview of each horizon or sensor.

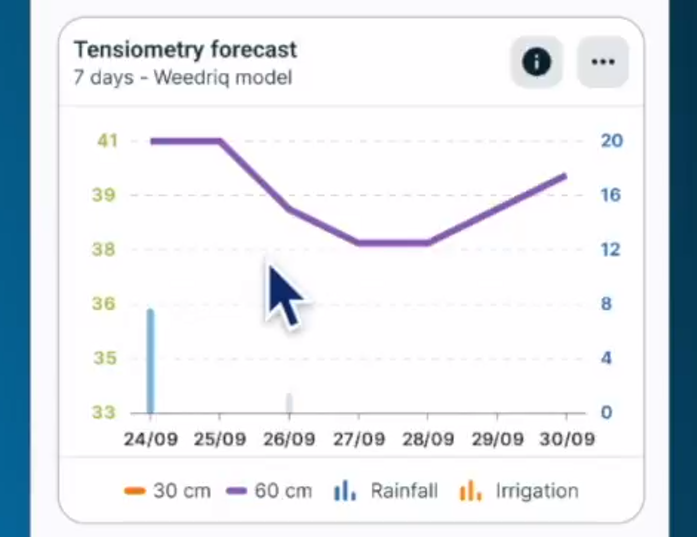

- Tensiometry Forecasts (for tensiometers only): new name for Weedriq, this widget shows the theoretical evolution of tensiometry in your fields based on forecasts.
ℹ️ For any question or issue, contact Weenat support directly from the app.
